Motor-Run Capacitors

View Instruction Sheet

Amrad

USA Made Capacitors

AmRad products come backed by over 80 years of quality, reliability & durability. These USA made capacitors have a double-rolled cover which provides a leak-proof enclosure & are encapsulated in thick non-PCB dielectric fluid to reduce heat.

  • Made in the USA (Manufactured in Palm Coast, Florida)
  • 5 Year Warranty
  • Filled with a thick non-PCB dielectric fluid to reduce heat
  • Individually tested & labeled with exact MFD rating at completion of manufacturing
  • Rust free all brass terminals
  • UL/CSA Recognized
  • OEM approved
  • Herm value capacitors now come with CPT®

100% Guaranteed

USA MADE CAPACITORS

100% Guaranteed

View Instruction Sheet

Herm Size USA Now with CPT®

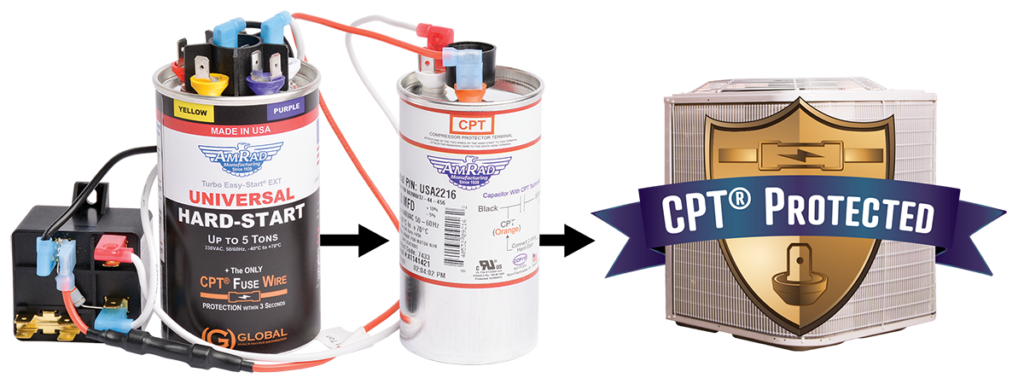

Every Hard-Start Needs CPT® (Compressor Protector Terminal)

Watch Video

Herm Size USA Now with CPT®

Every Hard-Start Needs CPT® (Compressor Protector Terminal)


CPT® acts as a kill switch between the hard-start and compressor in the event of a failed run capacitor; preventing damage and possible compressor failure.


Although AmRad capacitors have an extremely low failure rate, the CPT® has been introduced to ensure American consumers are always protected.

USA MADE CAPACITORS

ALL CAPS ARE 370/440 V

*Dimensions are approximate to a 1/4″ & include terminals

Single Capacitance (Oval Can)

Part Number

MFD

Can Dimensions

Case Qty

USA2027

3

2" x 1.25” x 2”

100

USA2028

4

2" x 1.25” x 2”

100

USA2029

5

2" x 1.25” x 2”

100

USA2030

6

2" x 1.25” x 2”

100

USA2031

7.5

2" x 1.25” x 2”

100

USA2035

10

2" x 1.25” x 3”

100

USA2037

12.5

2" x 1.25” x 3”

100

USA2260**

20

2.25" x 1.25” x 4.25”

25

USA2040**

25

2.25" x 1.25” x 4.25”

25

Single Capacitance (Round Can)

Part Number

MFD

Can Dimensions

Case Qty

USA2204

5

1.75" x 2.75”

100

USA2206

7.5

1.75" x 2.75”

100

USA2207

10

1.75" x 2.75”

100

USA2208

12.5

1.75" x 2.75”

100

USA2209

15

1.75" x 2.75”

100

USA2211

20

1.75" x 3.25”

100

USA2212

25

1.75" x 4.25”

100

USA2213

30

1.75" x 4.25”

100

USA2214

35

1.75" x 4.25”

100

USA2215

40

2.0" x 4.5”

50

USA2216

45

2.25" x 4.5”

50

USA2217

50

2.5" x 4.5”

50

USA2218

55

2.5" x 4.5”

50

USA2219

60

2.5" x 4.5”

50

USA2220

65

2.5" x 4.5”

50

USA2228

70

2.5" x 4.5”

50

USA2229

80

2.5" x 4.5”

25

Dual Capacitance (Round Can)

Part Number

MFD

Can Dimensions

Case Qty

USA2224A

20/3

2.0" x 4.5”

50

USA2224

20/4

2.0" x 4.5”

50

USA2222

20/5

2.0" x 4.5”

50

USA2224BA

25/3

2.0" x 4.5”

50

USA2225

25/5

2.0" x 4.5”

50

USA2225B

25/7.5

2.0" x 4.5”

25

USA2227BA

30/3

2.0" x 4.5”

50

USA2226

30/5

2.0" x 4.5”

50

USA2272B

30/7.5

2.0" x 4.5”

50

USA2226BA

35/3

2.0" x 4.5”

50

USA2227

35/5

2.0" x 4.5”

50

USA2291

35/7.5

2.25" x 4.5”

50

USA2227B

35/10

2.25" x 4.5”

50

USA2274

40/3

2.25" x 4.5”

50

USA2235

40/5

2.25" x 4.5”

50

USA2232

40/7.5

2.25" x 4.5”

50

USA2232A

40/10

2.5" x 4.5”

50

USA2236A

45/3

2.25" x 4.5”

25

USA2236

45/5

2.25" x 4.5”

50

Dual Capacitance (Round Can)

Part Number

MFD

Can Dimensions

Case Qty

USA2233

45/7.5

2.5" x 4.5”

50

USA2234

45/10

2.5" x 4.5”

50

USA2237A

50/3

2.5" x 4.5”

25

USA2237

50/5

2.5" x 4.5”

50

USA2238

50/7.5

2.5" x 4.5”

50

USA2240

55/5

2.5" x 4.5”

50

USA2218A

55/7.5

2.5" x 4.5”

50

USA2218BA

55/10

2.5" x 4.5”

50

USA2220B

60/5

2.5" x 4.5”

50

USA2221B

60/7.5

2.5" x 4.5”

50

USA2221BA

60/10

2.5" x 4.5”

50

USA2221

70/5

2.5" x 6.0”

25

USA2222A

70/7.5

2.5" x 6.0”

25

USA2220BA

70/10

2.5" x 6.0”

25

USA2222B

75/5

2.5" x 6.0”

25

USA2222BA

80/5

2.5" x 6.0”

25

USA2223B

80/7.5

2.5" x 6.0”

25

USA2223BA

80/10

2.5" x 6.0”

25
